Cudy Svič 10/100/1000 5-port Cudy GS1005PTS1 4xPoE+ sa 1 SFP port…
3.588,00 RSD
6971690791704
- Naručite odmah i Vaša porudžbina će stići za 3 do 7 radnih dana
- +381-34-334-400
Detalji
| Model Version | GS1005PTS1 2.0 |
| Interfaces | 1× 1.25G SFP Slot5× Gigabit RJ45 PortsPoE RJ45 Ports: #1~#4 |
| Max PoE Power | Port 1: 60WPort 2~4: 30W |
| PoE Notes | Port #1 supports 802.3at 60W, Ports #2-4 support 30W 802.3at/af |
| PoE Priority | Intelligent Power Management: Automatically disconnects last powered device if power exceeds budget |
| Shielded RJ45 Port | True |
| Extend Mode Ports | #3~#4 |
| VLAN Mode Ports | #1~#4 |
| LED Indicators | Power, PoE Status of Each Port, Link/ACT of Each Ethernet Port, PoE Max Status |
| Physical Buttons | Extend On/Off, VLAN On/Off, PoE Watchdog On/Off, PoE LED Toggle |
| Physical Buttons Note | PoE Watchdog reboots inactive clients for 5 mins; avoid on auto-upgrade devices |
| Copper Speed & Distance | Cat. 3+: 100 m @10 MbpsCat. 5+: 100 m @100 MbpsCat. 5e+: 100 m @1 Gbps, 250 m @10 Mbps (Extend Mode only) |
| Optical Spec & Distance | Depends on installed optical module |
| MAC Address Table | 2048 |
| Max Switching Capacity | 12.5 Gbps |
| Max Forwarding Rate | 8.929 Mpps |
| Jumbo Frame | 16 KB |
| Packet Buffer | 2 Mbit |
| Power Methods | AC |
| Power Input | 100-240V~ 50/60Hz |
| Power Supply | 120W |
| Max Power Excluding PoE | 5W |
| 802.3 Protocols | 802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X, 802.3x Flow Control, 802.3af PoE, 802.3at PoE |
| PoE Management | Intelligent Power Management |
| Grounding Methods | Three-Prong Plug |
| EMS / Surge Protection | IEC/EN 61000-4-2 ESD: Contact 6kV, Air 8kVIEC/EN 61000-4-5 Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV |
| Environment | Operating Temp: 0~40 ℃Storage Temp: -40~70 ℃Operating Humidity: 10~90%Storage Humidity: 10~95% |
| Mechanical / Dimensions | 200×118×44 mm (7.87×4.65×1.73 in) |
| Product Weight | 615.5 g (21.71 oz.) |
| Casing Material | Metal |
| Installation | Desktop / Rackmount (brackets not included) |

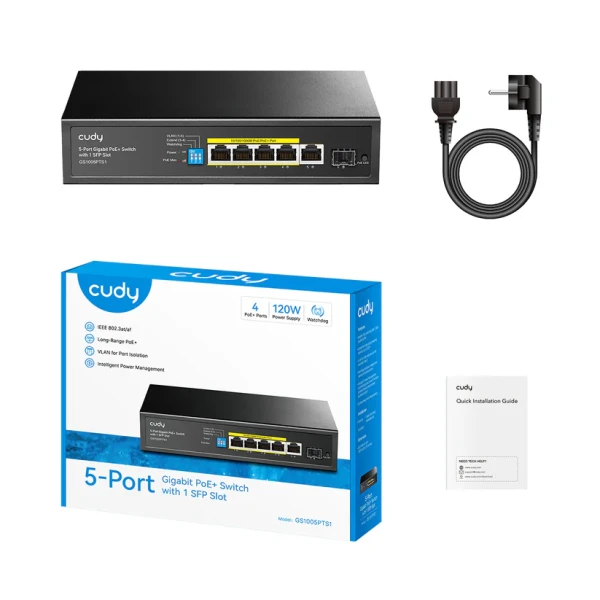

| Package Content | GS1005PTS1, Power Cord, Installation Guide |
